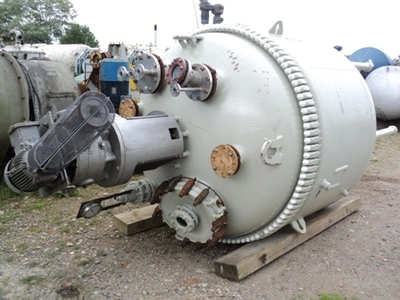

3,410 Litre, 4 Bar Internal, 6 Bar Jacket, Pfaudler Balfour Glass Lined Reactor

Description

Used Pfaudler-Balfour model XL-3410 3410 litre (750 imperial gallon) vertical glass-lined reactor. 3410 litre working capacity and 3900 litre total capacity. Internal approximately 1829mm diameter x 1181mm straight side. Features clamped dished top and welded dished bottom heads. Internal rated 4.83 bar design pressure. Carbon steel jacket approximately 595 litre capacity rated 6.21 bar design pressure. Includes top-mounted 3-blade retreat curve agitator, belt-driven by approximately 5.5 kW motor via Highfield gears model HV size 7.5 gearbox rated 39/4 reduction ratio at approximately 90 rpm. Also includes 2-finger down baffle. Mounted on six legs.
