2013 Litre, 2 Bar Internal, 2 Bar Jacket, NIKRO 316L Stainless Steel Reactor

Description

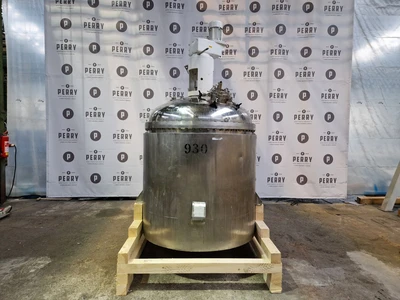

Used Nikro spol. s r.o. (Slovakia) 2013 total capacity polished stainless steel 316L vertical reactor/stirring vessel. Internal diameter 1300 mm x 1035 mm straight side height. Features bolted dished top and welded dished bottom heads. Internally rated for a maximum pressure of 2 bar and a maximum temperature of 130°C. Stainless steel jacket rated for a maximum pressure of 2 bar and a maximum temperature of 90°C. The jacket is insulated with black foam rubber and clad with stainless steel plates. Welded frame agitator with PTFE wall scrapers rotates at 31 rpm and is driven through a Nord gearbox by a 1.5 kW, 400 V, 50 Hz, 1385 rpm electric motor. Equipped with an Anga mechanical seal on the shaft. Top head connections include one 200 mm diameter manway. Central bottom discharge. Mounted on four lugs.
