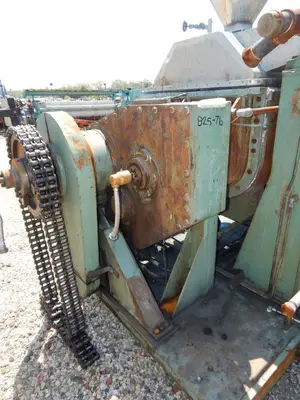

75 Gallon Day Mixtruder, Stainless Steel, Jacketed

Description

Used approximately 75 Gallon Stainless Steel Jacketed Mixtruder with dispersion blades and extruder screw discharge.
Manufacturer: The J.H. Day Company
National Board: 1117
Serial: 86065
Year: 1971
Internal pressure: Atmospheric @ 353°F; shell is 7/16" thick
Jacket pressure: 125 psi @ 353°F; jacket is 3/8" thick
Mixer Dimensions: 32" x 32" x 25" high, approximate total capacity is 110 gallons
Extruder screw is 8" diameter, driven by a hydraulic motor, and hydraulic tilt discharge are both powered by a 30 HP 230/460 volts Vickers Hydraulic pumping system
Mixer blades driven by a 25 HP US Varidrive motor, 220/440 volts, 31 to 125 RPM to chain and sprocket giving approximately 15 to 62.5 RPM output speed on the blades

---
