150 HP Mdl. 2050H Granulator 20" x 50" Throat Opening

Description

Used Cumberland Model 5018H Granulator
20" x 50" throat opening with 18-knife hog-style rotor
Rotor is belt-driven by a 150 hp motor, 460 volts, 1175 rpm TEFC motor
16" O.D. motor sheave, 26" O.D. rotor sheave
(2) bed knives (4 pieces) with (1) in the raised position
160 mm rotor bearings with air purge
Cutting chamber mounted on step base. 10" O.D. airveyor reduced to 8" O.D.
Includes starter panel with Size 5 starter and a fused disconnect rated for 400 amps
Includes a Sterling size 9.5 blower with a 15 hp motor
Fitted with 3/8" hole screens and includes a used set of 5/16" hole screens
Serial #551000-84002
New 1984
Unit to be supplied with a Pelican-style hopper and Sterling size 9.5, model IHE 15 hp blower

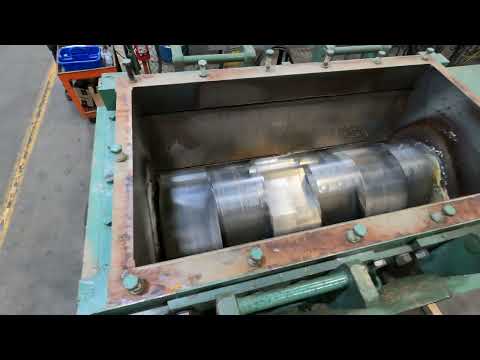

Click on the link below to see a video of the machine running.
