Used Stainless Steel Contact Part Lobe Pump Waukesha Type 018

Description

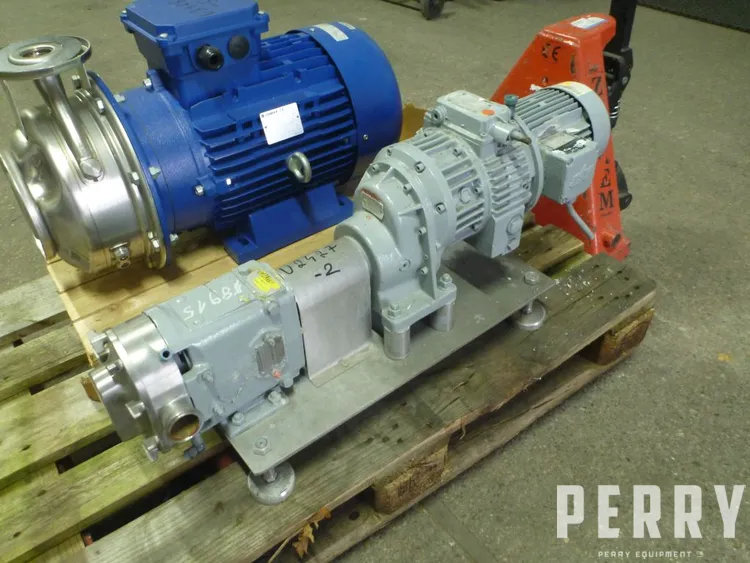

Used stainless steel contact parts lobe pump by Waukesha type 018. Contact parts designed in stainless steel. Pump is driven by el motor 0,75 kW, via reducer. Working rotations of lobes up to 342 rpm. Working pressure of outgoing product up to 13.8 bar. One rotation output - up to 0,11 l of liquid. On current drive pump can reach output up to 2257 l/h. Pump has side inlet and side discharge. Connections have diameter 40 mm. Pump is mounted on 4 legs. Pump had been working in food industry. Machine can reach output up to 3.8 m3/h (depends on product) at maximal lobe rotations up to 600 rpm (after exchange of drive).
